In the realm of injection molding, various components are crafted from thermoplastics or thermosets, with Liquid Silicone Rubber (LSR) emerging as a premier choice among thermosets. The LSR injection molding process provides an efficient and cost-effective solution for producing parts that are flexible, impact-resistant, and capable of withstanding high temperatures. This innovative technique transforms liquid silicone rubber from its uncured state into durable, finished products. LSR is particularly well-suited for manufacturing a diverse array of silicone items, including gaskets, kitchen utensils, over-molded components, and much more.
This blog will delve into the intricacies of LSR injection molding, covering everything from processing equipment and operational principles to applications, advantages, and crucial considerations. Whether your goal is to manufacture silicone products or to understand the benefits of LSR technology, this guide aims to provide comprehensive insights.

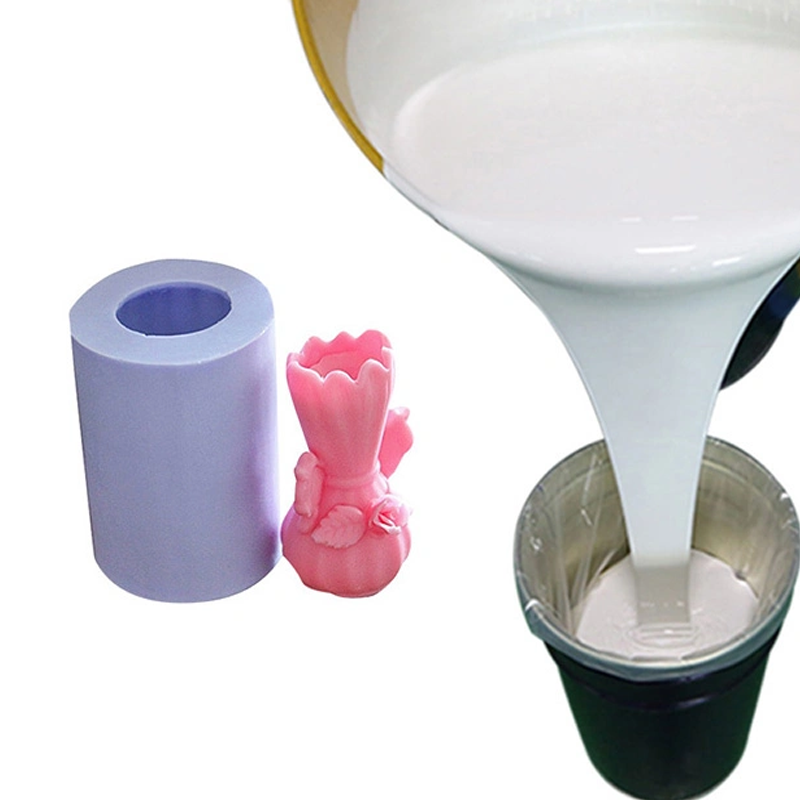

Understanding Liquid Silicone Rubber
Liquid Silicone Rubber is a thermosetting elastomer characterized by a molecular structure that includes a backbone of alternating silicon and oxygen atoms, along with various side groups such as methyl or vinyl. The presence of these methyl groups contributes to silicone rubber’s exceptional hydrophobic properties, making it ideal for electrical insulation and a variety of other applications.

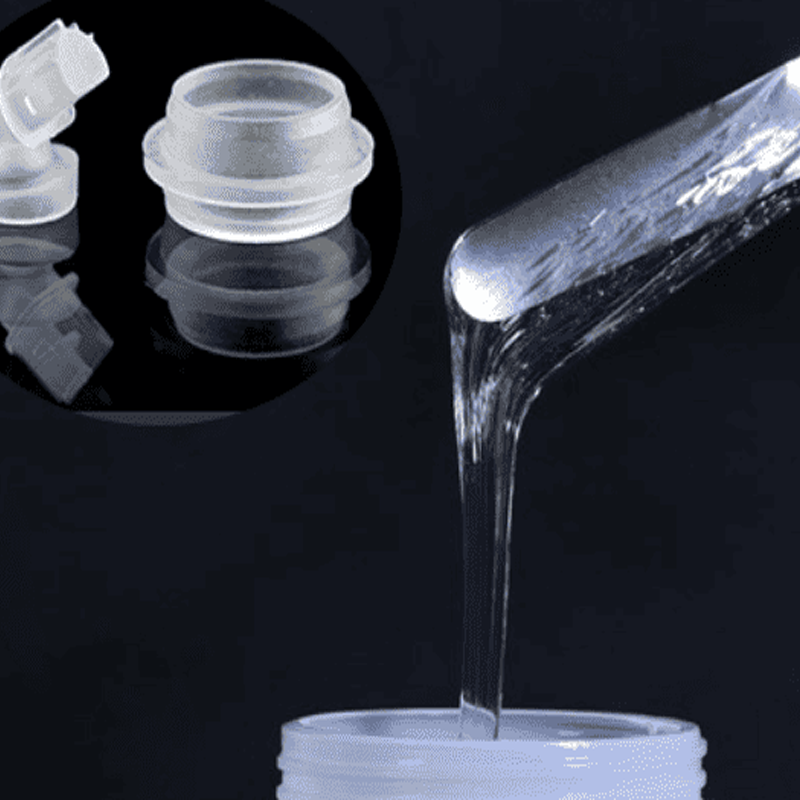

LSR is a high-purity, platinum-cured silicone known for its excellent fluidity and versatility. It is typically injected into a mold cavity to create precise, high-quality components. With a low compression set, high thermal stability, and the ability to withstand extreme temperatures, LSR is utilized in numerous applications, including seals, sealing membranes, electrical connectors, infant care products, and kitchenware, especially in contexts where durability and smooth finishes are essential.
Key Benefits of Liquid Silicone Rubber (LSR)
Odorless and Tasteless
LSR is completely free from any odor or taste, making it an ideal material for food-grade, beverage-related, and infant products.
Exceptional Mechanical Performance
LSR boasts remarkable elongation and high tensile and tear strength, coupled with outstanding flexibility, making it suitable for various demanding applications.
Durability
Designed to endure a wide range of temperatures, LSR components are well-suited for both indoor and outdoor environments, capable of withstanding conditions ranging from intense heat to severe cold.
Chemical Resistance
LSR exhibits resistance to water, oxidation, and various chemical solutions, including acids and alkalis, and can be sterilized through different methods.
Temperature Stability
LSR maintains its mechanical properties across a broad temperature spectrum, from -60°C to 250°C, ensuring reliability in extreme environments.
Biocompatibility
As a hypoallergenic material resistant to bacterial growth, LSR is safe for prolonged contact with human tissue and fluids, making it ideal for medical applications.
Excellent Electrical Insulation
With superior insulating properties, LSR can operate effectively in both high and low-temperature environments, far surpassing traditional insulating materials.
Customizable Transparency and Color
Naturally translucent, LSR’s base white color can be easily pigmented, allowing for the production of custom-colored items tailored to specific design requirements.

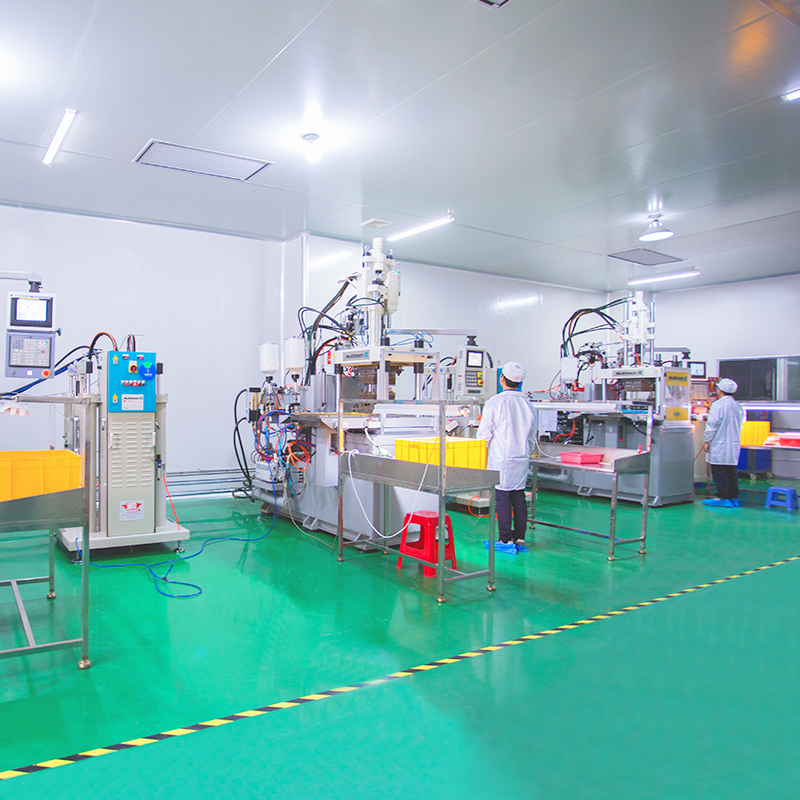

The Process of LSR Injection Molding
Liquid Silicone Rubber injection molding, also referred to as Liquid Injection Molding (LIM), is a thermosetting process designed for the mass production of highly flexible and durable silicone components. The procedure begins with the blending of two components: a silicone base and a platinum catalyst, which are injected into a mold where heat curing occurs. This method requires meticulous mixing of the components while maintaining a cool temperature before injecting them into a preheated mold cavity, where the silicone solidifies into the desired shape.
Advantages of LSR Injection Molding
This method offers numerous advantages, including simplified manufacturing, consistent part quality, and efficient production of large volumes. LSR injection molding is particularly beneficial for applications demanding high durability, thanks to its low compression set and excellent thermal resistance. Its versatility makes it an attractive choice across various industries such as automotive, healthcare, electronics, consumer goods, and general manufacturing. By capitalizing on the efficiencies of LSR molding, these sectors can enhance production processes significantly.
Step-by-Step Breakdown of the LSR Injection Molding Process
- Mold Creation: A mold specifically designed for LSR processes is fabricated using CNC machining. The mold must withstand high temperatures inherent in LSR molding, with surface finishes tailored for the desired product characteristics.
- Material Preparation: Liquid silicone rubber is prepared in two separate containers, one for the base material and the other for the platinum catalyst. A metering pump ensures a precise 1:1 mixing ratio, with the option to add color pigments or other additives. The mixture is then delivered to a static mixer for thorough blending.
- Material Injection: The blended LSR is heated and injected into the mold cavity at high pressure through a nozzle. As the material fills the mold, it conforms to the intricate details, ensuring precise replication of the desired shape.
- Curing: Once the mold is filled, it is heated to initiate the curing process, transforming the liquid silicone into a solid form. The curing duration varies based on the complexity and size of the molded part.
- Cooling and Demolding: After curing, the part cools before being removed from the mold, often utilizing automated systems for efficiency. The precision of LSR molding typically results in minimal flashing.
- Secondary Operations: Post-molding processes may include trimming, printing, or assembly to ensure that the final product meets all specifications.
Advantages of LSR Injection Molding
LSR injection molding stands out as an optimal method for producing precision silicone parts, delivering exceptional dimensional accuracy and intricate designs. Here are the key benefits:
– Durability: LSR components are resistant to UV rays, ozone, and provide superior electrical insulation, making them ideal for demanding applications such as gaskets and rugged electronics.
– High Precision Manufacturing: The injection molding process allows for the creation of highly complex parts with tight tolerances, ensuring detailed features are accurately replicated.
– Minimized Flash: The low viscosity of LSR results in complete mold cavity filling, reducing flash and streamlining post-molding finishing operations.
– Automated Manufacturing: The LSR injection process can be fully automated, reducing human error and increasing production reliability.
– Consistent Product Quality: Uniform distribution of LSR in the mold guarantees consistent quality across all manufactured parts.
– High-Volume Production: Advanced LSR materials facilitate cost-effective and efficient production of complex silicone components in large quantities.
– Reduced Waste: The environmentally friendly nature of LSR injection molding generates minimal material waste, with silicone being recyclable for reuse in new products.
– Improved Safety: Automation enhances workplace safety by minimizing direct operator interaction with the mold area, reducing risks associated with manual handling.

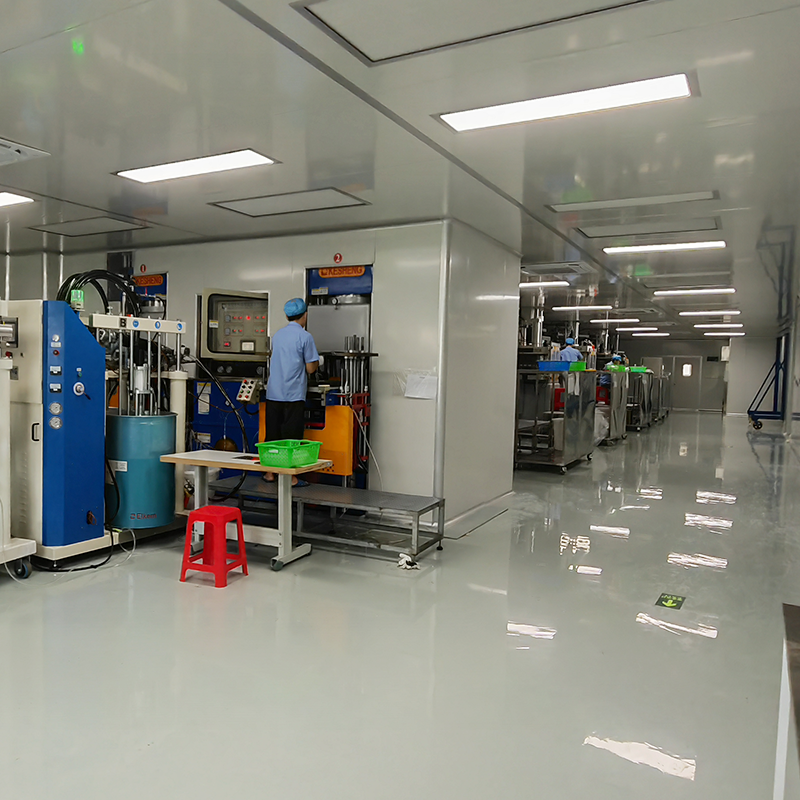

Essential Equipment for LSR Injection Molding
Successful LSR injection molding relies on several key mechanical components:
– Injection Unit: This unit pressurizes the liquid silicone mixture for injection into the metering system, with adjustable pressure and speed tailored to the process.
– Metering System: Responsible for pumping the silicone base and catalyst, this system ensures accurate mixing ratios, guaranteeing uniform blending of the materials.
– Supply Containers: Raw materials are stored in supply drums or containers, feeding the metering system for consistent material availability.
– Mixing System: A static or dynamic mixer blends the materials, ensuring a homogenous mixture before guiding the silicone into the mold.
– Injection Nozzle: Directing the material into the mold cavity, the nozzle is often equipped with an automated shut-off valve to prevent leakage.
– Mold Clamping System: This system secures the mold during injection, releasing it afterward to facilitate part removal.
These components work together to ensure high-precision, efficient production of LSR parts, maintaining quality throughout the injection molding process.
Comparing LIM and Compression Molding
Liquid Injection Molding (LIM) and compression molding are distinct processes, each with unique advantages and applications.
– Process Distinction: LIM utilizes an injection system for liquid silicone, while compression molding applies force to shape the silicone material.
– Cost Efficiency: Compression molding is often more economical, suitable for lower production costs. LIM, while more expensive due to advanced technology, offers greater production capabilities.
– Speed and Efficiency: LIM provides faster cycle times and enhanced automation compared to the slower, labor-intensive compression molding.
– Product Versatility: LIM excels in producing complex parts with minimal manual intervention, while compression molding accommodates a variety of thicknesses and designs.
– Application Differences: LIM is preferred for high-performance applications requiring precision, while compression molding is commonly used for everyday items prioritizing simplicity and cost-effectiveness.
Applications of LSR Injection Molding
LSR injection molding is a versatile manufacturing technique employed across numerous industries:
Medical and Healthcare
LSR’s biocompatibility makes it ideal for medical applications. Its hypoallergenic properties allow for safe, prolonged skin contact. Common products include drug delivery systems, catheters, and surgical instruments.
Automotive Industry
In automotive manufacturing, LSR’s resistance to extreme temperatures is advantageous for components near heat-generating parts. Typical products include seals, electronic enclosures, and windshield wiper blades.
Kitchenware
The kitchenware sector benefits from LSR’s durability and flexibility, with applications in utensils, bakeware, and food storage containers, all ensuring safety for food contact.
Electronics
Outstanding insulating properties make LSR suitable for electronic components, including keypads, seals, and watertight gaskets, ensuring reliable performance in challenging environments.
Consumer Goods
LSR is widely used in everyday products like toys, pacifiers, and wearable technology, valued for its durability and ease of cleaning.
Conclusion
Liquid silicone rubber injection molding represents an efficient and adaptable manufacturing method, offering numerous advantages over traditional rubber molding techniques. Its design flexibility, precision
